ATLAPEX backhoe loader is a versatile and powerful piece of construction equipment that is used for digging, excavation, and demolition work. It is a type of earth-moving machine that combines the capabilities of a loader and a backhoe into one unit. The loader is located in the front of the machine and is used for loading and transporting materials, while the backhoe is located in the rear and is used for digging and excavation work.
Rated Power
Bucket Capacity
Backhoe Capacity
Backhoe loaders are commonly used in construction sites, road maintenance, and other heavy-duty jobs. They are known for their ability to handle a wide range of materials, including soil, gravel, rocks, and debris. They are also equipped with a variety of attachments that can be used for different tasks, such as buckets, hammers, and augers.
1-Comfortable seat and sufficient space to improve the operator's experience

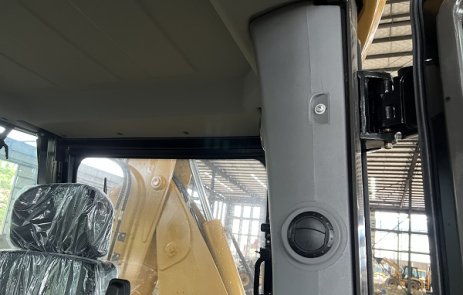

2-Reinforced cab with professional anti-rollover certification to improve safety

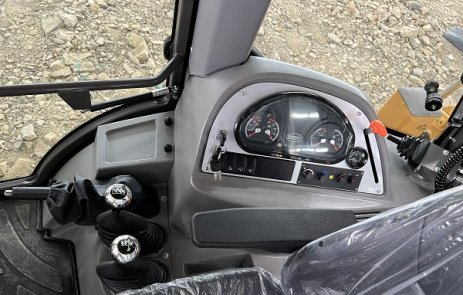

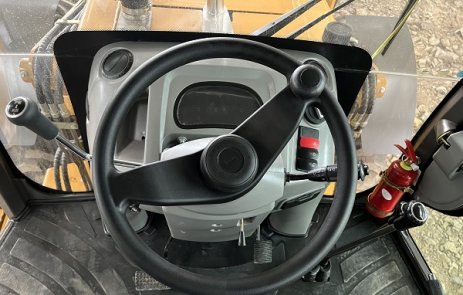

3-Dashboard for front loader, clear and concise, easy to operate
4-LED instrument panel with complete functions and clear signs

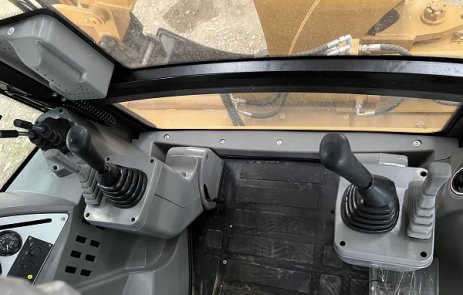

5-The operation space of the rear excavator is spacious, and it is surrounded by glass, which has a wide field of view and is easy to operate

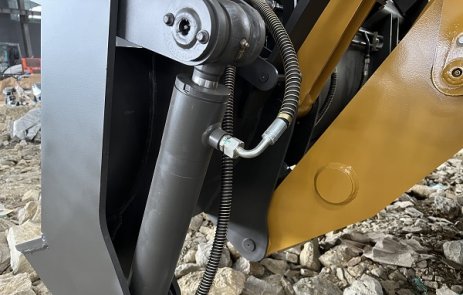

6-High-quality oil cylinders ensure the normal operation of the machine and realize the operation function

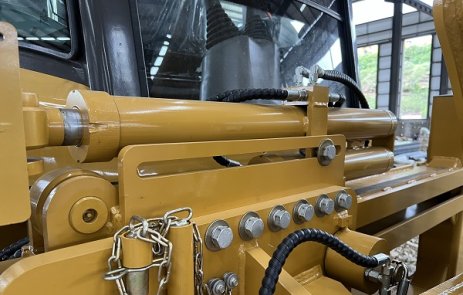

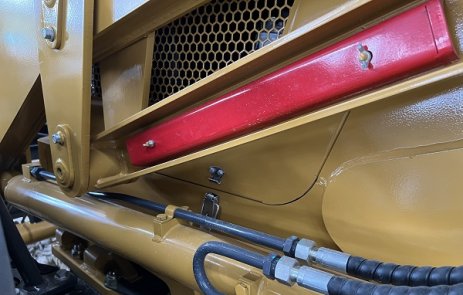

7-Used to support and protect the cylinder, improve safety

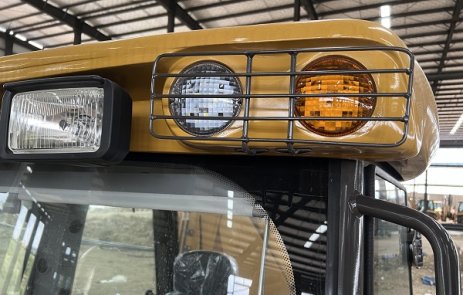

8-Sufficient light sources provide protection for operations in dark places
9-Realize multi-camera operations at the rear

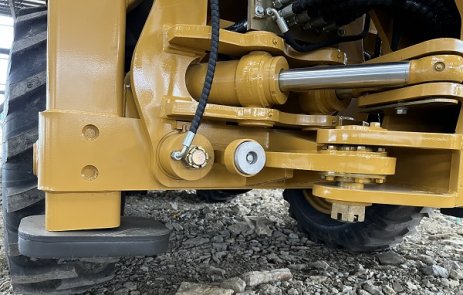

10-High-quality pins provide a guarantee for the stability of the structure

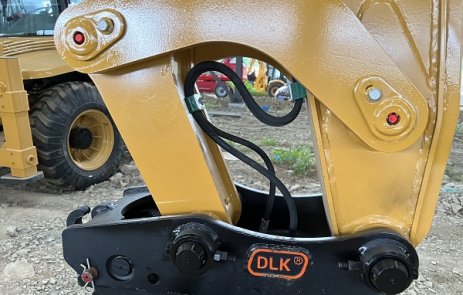

11-Can be equipped with buckets of different specifications, attachments, etc., and can also be equipped with mechanical or hydraulic quick change

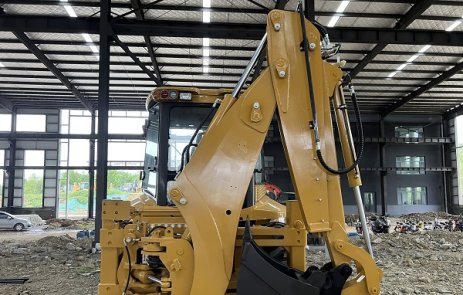

12-Optional rear digging of the same type as JCB

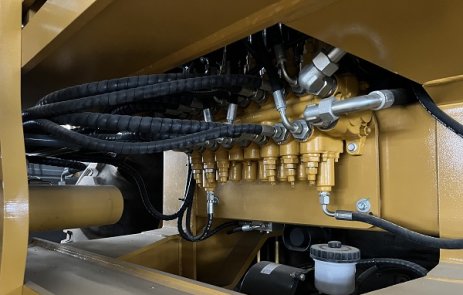

13-Powerful multi-way valve provides guarantee for kinetic energy output and stable operation
| Model | BK100 Pro |
| L×W×H | 6050×2465×3100mm |
| Overall Operating Weight | 8200kg |
| Wheel Base | 2280mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1m³ |
| Loading Lifting Capacity | 2500kg |
| Breakout Force | 47kn |
| Dumping Height | 2760mm |
| Dumping Distance | 900mm |
| Backhoe Capacity | 0.3m³ |
| Max. Digging Depth | 4085mm |
| Swing Angle Of Backhoe | 180° |
| Backhoe Bucket Digging Force | 50kn |
| Max. Traction Force | 60kn |
| Model | Weichai WP4G95E221 |
| Rated Power/Speed | 70/2200kw/rpm |
| Cylinder-Inside | 4-105×130 |
| Min. Fuel Consumption | 230g/km.h |
| Diverter Model | BZZ5-250 |
| Steering Angle | ±36° |
| Min. Turning Radius | 6581mm |
| Pressure Of The System | 19Mpa |
| Final Reducer | Wheel hub/Single Stage Final Reducer |
| Model | TLB1-4WD |
| Type | Single-stage Three Elements |
| Type | Fixed Shaft Power Transmission |
| Gears | 4 Forward And 4 Reverse |
| Max.Speed | 38km/h |
| F/R | 14-17.5/19.5L-24 |
| Service Brake | Wet internal self-regulatic |
| Self-balance | |
| Emergency Brake | Operation Power Implementing Brake |
| Manual Operation Power Terminating Brake | |
| Pressure Of Hydraulic System | 20Mpa |
We will contact you within 24 hours.
Backhoe loader BKA100 adopts central handover, small turning radius and flexible operation; adopts hydraulic transmission, four-wheel drive, stable performance and high reliability; the frame is all made of manganese steel plate, with high strength and long service life.
Rated Power
Operating Weight
Standard Bucket Capacity
ATLAPEX backhoe loader BK120 has unique three drive modes, and is equipped with a high-end hydraulic system to ensure the stability of the operation to achieve interesting operations. A variety of attachments can be selected for various operations, and the telescopic arm is optional to increases the scope of work.
Rated Power
Operating Weight
Standard Bucket Capacity
