QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Max.Load Capacity

    2500KGS

  • Operating Weight

    5400KGS

  • Lifting Height

    5000MM

DESCRIPTIONS

With a robust support system and anti-slip features, it ensures stabiliduring handling operations, reducing the risk of accidents and ensuring operational safety."


Offering efficient telescopic and lifting speeds, it can swiftlyand effectively complete various lifting and stacking tasks with high precision."


Suitable for diverse outdoor operations, construction sites, agricultural environments, and more, it can handle a wide array of lifting, stacking, and loading tasks, providing comprehensive handling solutions.

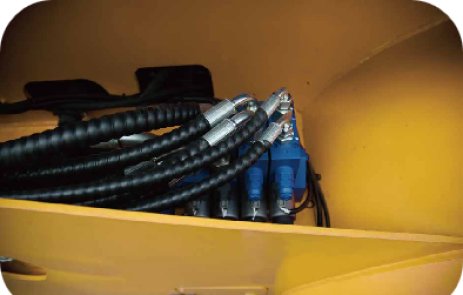

Proportional Solenoid Valves

These valves offer high accuracy and safety during operation, providing precise control over movements and lifting actions.

331713f268a19b6e4ed5323fad4bc8d

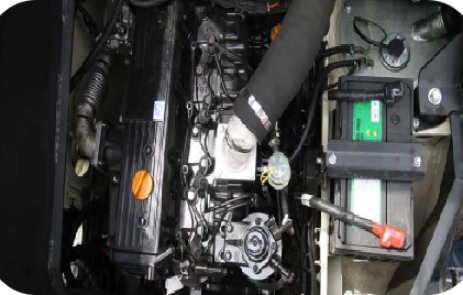

Engine Hood and Tilt Cab Accessibility The large opening angle of the engine hood and the tilt cab design greatly simplify maintenance procedures, providing easier access to internal components for routine inspections and repairs.

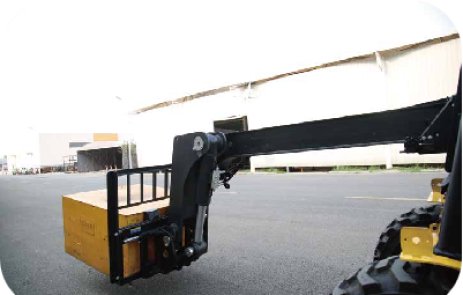

Anti-rollover Protection System

Anti-rollover Protection System An advanced anti-rollover protection system significantly enhances operational safety, especially during challenging lifting and maneuvering tasks.

d312c018c656bbe4409453652f28092

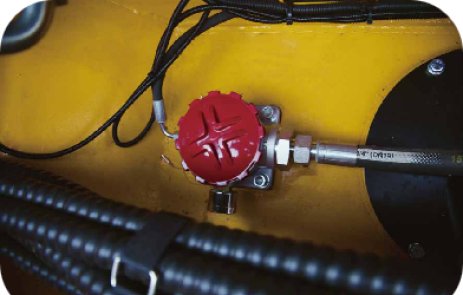

Cylinder with Balance Valve Equipping cylinders with balance valves ensures that goods on forks remain secure, even in the unlikely event of a hydraulic hose burst, preventing accidents and ensuring operator safety.

e934de6e3b10bf20f143d9808214e77

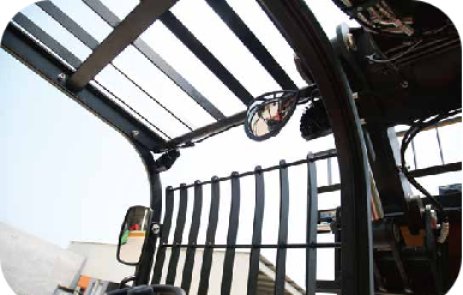

Enhanced Visibility Isolated Overhead Guard Dual rear and wide-angle view mirrors significantly improve the operator's visibility, ensuring a comprehensive view of the surroundings. This feature enhances safety and operational efficiency, particularly in crowded or complex working environments. The forklift is fitted with an isolated overhead guard to minimize vibrations, ensuring a smoother and more comfortable experience for the operator during prolonged operation.

TECHNICAL PARAMETERS

Model

ATF25-50 2WD
Max.Load Capacity
kg2500
Lift Capacity at Maximum Reach
kg900
Max. Forward Reach
m2.9
Max. Lift Height
mm5000
Load Center
mm500
Front wheel outer diameter
mm920
Gradeability (Laden)
%16
Max. traction
KN36
No.of Boom Sections
n
Max. Travel Speed
km/h18
Attachments of FT

Fork/bucket
Bucket capacity
m30.6
Bucket discharge height
mm3500
Front Tire ReachAmm400
Overall Weight
kg5400




Overall Length(without fork)Bmm3500
Overall WidthCmm1600
Overall HeightDmm2280
WheelbaseEmm1950
Ground ClearanceFmm245
Front TrackGmm1250
Cab WidthHmm960
Outside Turning RadiusImm3250
Outrigger Width (Retracted)Jmm5700
Fork SizeK*L*Mmm1070x122x40
Max Fork WidthNmm1036
Rear OverhangPmm600




Boom pitch angle
deg63/-5
Fork pith angleR/Sdeg30/100
Boom lift speed
s
Boom down speed
s
Boom extension speed
s
Boom retraction speed
s
Fork tilt speed
s
Fork retraction speed
s3.3
Indoor noise
dB95
outdoor noise
dB102
Lifting speed (Laden/ Unladed)
mm/s450
Lowering speed (Laden/ Unladed)
mm/s540
