Backhoe loader BKA100 adopts central handover, small turning radius and flexible operation; adopts hydraulic transmission, four-wheel drive, stable performance and high reliability; the frame is all made of manganese steel plate, with high strength and long service life
Rated Power
Bucket Capacity
Backhoe Capacity
Backhoe loaders are commonly used in construction sites, road maintenance, and other heavy-duty jobs. They are known for their ability to handle a wide range of materials, including soil, gravel, rocks, and debris. They are also equipped with a variety of attachments that can be used for different tasks, such as buckets, hammers, and augers.
1-Standard quick hitch for easy replacement of various attachments.

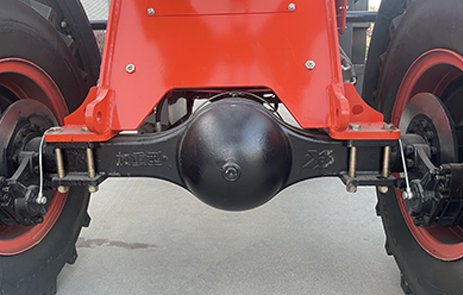

2-Cast axle for greater load capacity.

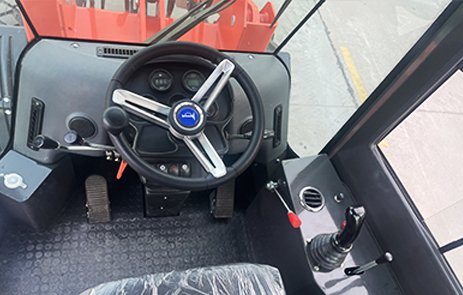

3-Large cab space improves control comfort.
4-Pilot hydraulic operating system, equipped with functional armrest box, front multi-way valve, easy to operate and not easy to fatigue.

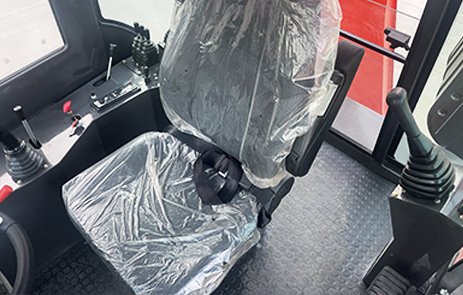

5-High comfort shock-absorbing seat, comfortable driving.
6-Strengthened rear digging safety lock to improve operation safety.

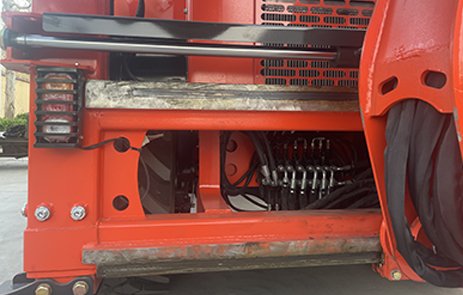

7-Horizontal movement to increase the operating area.
| Model | BKA130 |
| L×W×H | 5890×2300×3460mm |
| Overall Operating Weight | 6300kg |
| Min. Ground Clearance | 320mm |
| Bucket Capacity | 1.3m³ |
| Loading Lifting Capacity | 2500kg |
| Lifting Height | 4660mm |
| Dumping Height | 3000mm |
| Dumping Distance | 840mm |
| Backhoe Capacity | 0.3m³ |
| Max. Digging Depth | 3830mm |
| Max. Digging Height | 4700mm |
| Max. Digging Radius | 5160mm |
| Boom Rotary Angle | 190° |
| Model | Yunnei |
| Rated Power | 55Kw |
| Max.Flow | 45m/r |
| Working Pressure | 20MPA |
| Grade Ability | 30% |
| Turning Radius | 5000mm |
| Gear Shift | Forward 4 And Reverse 4 |
| Max.Speed | 30km/h |
| F/R | 16/70-20 |
We will contact you within 24 hours.
Backhoe loader BKA80 adopts central handover, small turning radius and flexible operation; adopts hydraulic transmission, four-wheel drive, stable performance and high reliability; the frame is all made of manganese steel plate, with high strength and long service life.
Rated Power
Operating Weight
Standard Bucket Capacity
