QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Mixing Capacity

    4m³

  • Total Weight

    11000KG

  • Power

    92KW

DESCRIPTIONS

A self-loading concrete mixer is a multi-functional machine that can self-loading all the concrete ingredients, mix, transport, and discharge.

Self loader mixer usually possesses a four-wheel-drive system that gives high traction to help the machine work in very soft clay site conditions.

It has a hydraulic-driven drum that provides high turning that assists in reliable mixing procedure. Once the mix is ready the drum can be lifted for fast and also reliable discharge of concrete.

The self concrete mixer machine has a steel bucket that makes it possible for the operator to load resources to the drum.

The loading and also blending operations, the speed, and direction of the drum are all regulated from the cabin of the vehicle

A self loading transit mixer can be quickly packed in big vehicles and also delivered to any kind of long-distance construction site. This feature makes it suitable for little, slim, and isolated building and construction sites.

1

1- Many optional configuration for concrete mixer to be more efficient. ATLAPEX Concrete Mixer offers many optional configuration, which can help customer more efficient, such as two-direction cab operation, cement bucket, air conditioner, high pressure car wash, hydraulic electronic balance, Electronic shift etc.

2

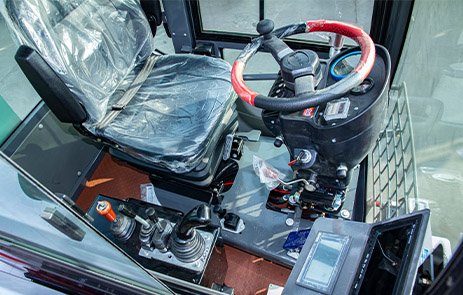

2- Deluxe Cab for Operation Comfort. To creat very good and cofortable operation experience while working, every detials are well designed.

3

3- Wheel System. The self-loading mixer comes with a 4-wheel drive wheel system which makes it possible for the operator to manure with the toughest terrains in the building and construction site extremely quickly. These mixers are outfitted with high resistant engineering tires.

4

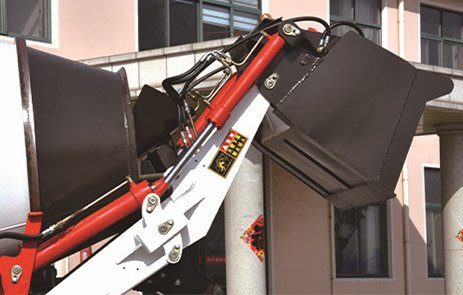

4- Mixing System. The mixing system in the self propelled concrete mixer assists in the blending of aggregate as well as concrete fed to the blending drum with water offered from an independent water system or through a hands-on supply. This blending drum is invigorated by a completely powered engine to deliver an uniform blend and quality concrete.

5

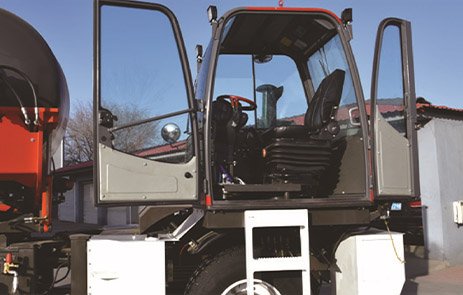

5- The Two directions for cab. Cab can be rotated, driving in both directions, no need to turn around, no need to worry about the narrow construction site.

6

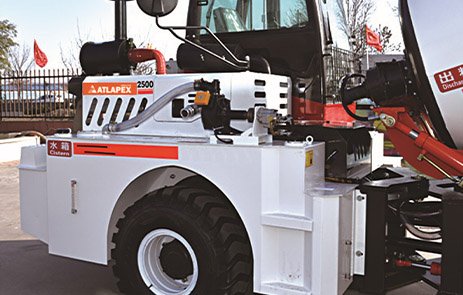

6- High pressure wash & Self suction pump. It is more convenient and efficient to add water with the self-suction pump, and the high pressure can be used after use of mixer for a good maintaince, Cleaner, faster and more convenient.

7

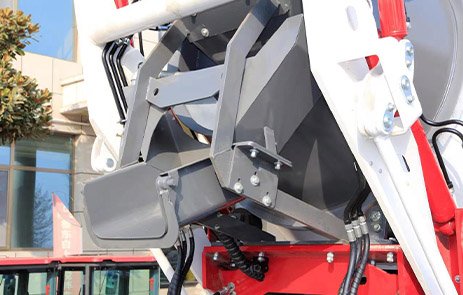

7- The discharging system improves work efficiency. The discharging system in the self feeding concrete mixer provides option to the driver to discharge the concrete mix at different angles and also heights. The discharge system can be adjusted by the operator by regulating the blending drum angles to provide discharge in numerous elevations. The change of drum angles can be done by a handle shank in the operator cabin.

8

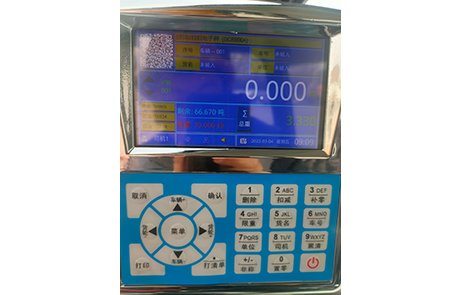

8- Weighing System. The Weighing system in a self loading mobile concrete mixer consist of computerized considering tools which regulate as well as present the weight of the material.

9

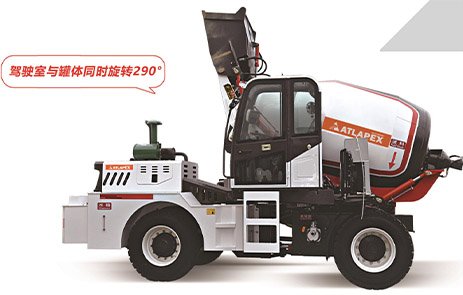

9- 290° Free Rotation. 290° free rotation design of our machine covers a whole range of working areas and effectively improves working efficiency to 30%.

TECHNICAL PARAMETERS

1 2
ModelAL6500
Mixing capacity (m³)4m³
Machine size (mm)(Raised bucket)7150×2640×4330
Machine size (mm) (Lowered bucket)8580×2640×3330
Wheelbase (mm)3200
Total weight(Kg)11000
EngineYUCHAI 6105 TURBO supercharged
Power (Kw)92
Gearbox315 Separated type
Drive axle2.5T wheel side deceleration Bridge
Tires16/70 R22.5 double tires
Bucket capacity (m³)0.65
Mixing capacity (m³)≥3.8
Reduction ratio1:103
Rotating speed(laps/minute)≥15 laps/minute
Reducer Made in china
Travel speed(km/h)25
Axle number traction type4×2
