Crawler Excavator APX35 is a powerful and versatile piece of construction equipment. With its robust design and advanced features, it is capable of handling various excavation tasks with ease. Whether it's digging trenches, demolishing structures, or lifting heavy objects, the APX35 is up to the challenge.
Rated Power
Operating Weight
Bucket Capacity
Standard configuration: load sensitive control system, boom side swing, broken pipeline, telescopic chassis (990/1300) high and low speed, rubber track, cab,one-button start, bulldozing blade.
1. Ultra-long warranty for vehicle structural parts: 2 years/4000 hours;
2. Well-known brand hydraulic system components ensure stable performance;
3. Walking motor:
Reducer: smooth walking and parking
Brake valve: not slipping when climbing hills
4. Radiator: The radiator is enlarged and widened, the heat dissipation effect is good, and the continuous operation is not high temperature.
5. Low fuel consumption and strong power.
6. Strong working ability: can be used with hydraulic thumb clamp, breaker, auger, ripper, rake, small bucket
Flat-bottomed buckets, inclined buckets, forks and other attachments can meet the different operation needs of customers.

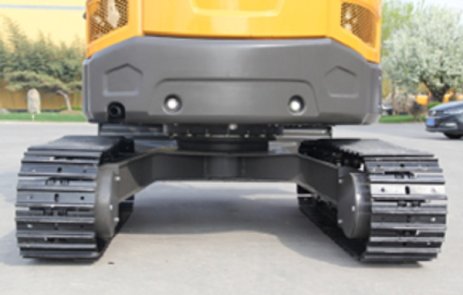

1-The chassis structure adopts X-shaped structure, which has strong stability and bearing capacity.

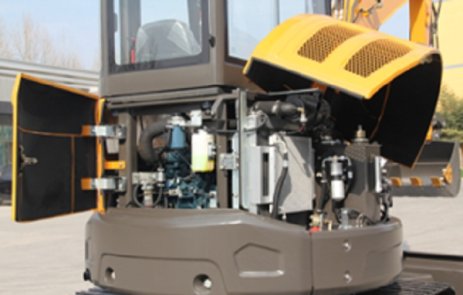

2-With KUBOTA D1703 engine: 18.2Kw, meet EURO5, EPA4 emissions.

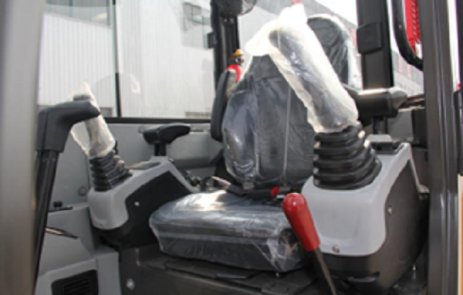

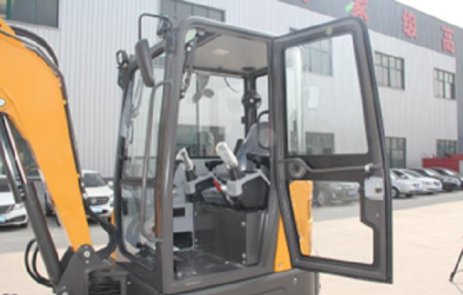

3-The interior space is large, and the height of 190cm does not have the slightest sense of oppression and urgency in the cab.

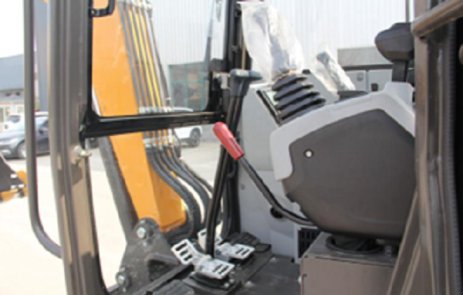

4-The integrated safety lock design ensures personal and vehicle safety when getting on and off the machine
5-The key is separated from the start button, which greatly improves the practicability. In the severe cold period, turn the key over for 4~5 seconds to warm up and start with one button.
6-Adopt hydraulic travel, flexible and convenient operation.

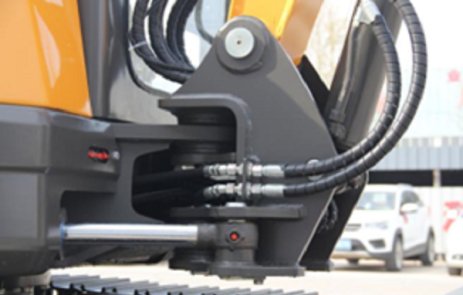

7-Left 55°/Right 65°,improve working range.

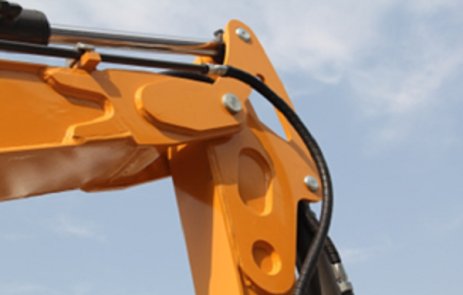

8-Post-welding processing of structural parts, a beveling process is added to all welding surfaces to ensure that the welds do not crack.

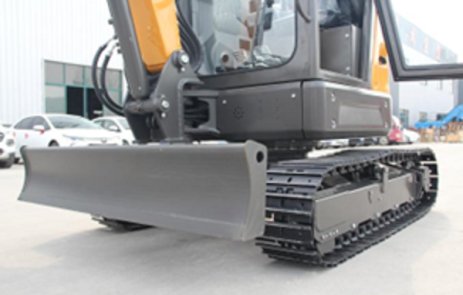

9-The bulldozing blade is formed by one-piece forging.

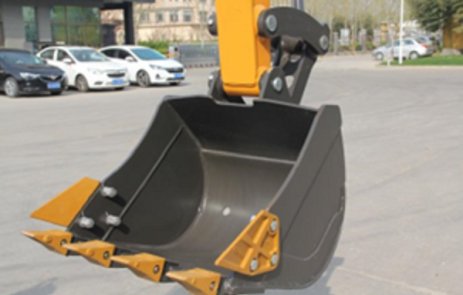

10-Standard 0.12m³ bucket, crushing pipeline, can be matched with a variety of attachments to meet different operating needs.
| Bucket Capacity | 0.12m³ |
| Swing Speed | 0-11rmp |
| Gradeablity | 30° |
| Max.Bucket Digging Force | 30KN |
| Max.Arm Digging Force | 18KN |
| Engine Model | KUBOTAD1703 |
| Power/Revolution Speed | 18.5kw/2200rmp |
| System Pressure | 22.5MPA |
| Dimension | 4915×1720×2525mm |
| Cabin Height | 2290mm |
| Axle Base | 1670mm |
| Track Distance | 1420mm |
| Minimum Ground Clearance | 295mm |
| Tail Swing Radius | 870mm |
| Max.Digging Height | 4800mm |
| Max.Dumping Height | 3406mm |
| Max.Digging Depth | 3208mm |
| Max.Vertical Digging Depth | 2957mm |
| Max.Digging Radius | 5480mm |
| Min.Swing Radius | 2530mm |
| Max.Dozer Blade Lifting Distance | 365mm |
| Max.Dozer Blade Cutting Distance | 385mm |
