Streamlined design: The new design reduces air friction for improved speed and safety.
Excellent performance: Equipped with a 48V AC control technology and an Italian brandedcontroller with advanced hydraulic system. It offers improved performance while significantlyreducing energy consumption.
H-type bridge box: The compact structure enhances transmission efficiency, reduces noise.simplifies the structure, and enables lightweight design.
Large capacity battery: Provides longer running time.
Rated Load
Operating Weight
Mix Lifting Height
ATLAPEX electric counterbalanced forklift adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

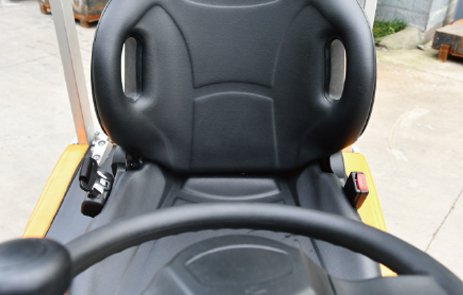

1-Ergonomic seat and operation platformoffer operator a comfortable condition.

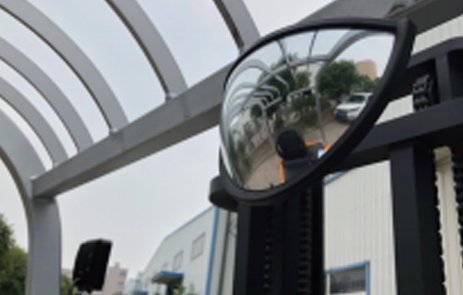

2-Semi-circle rearview mirrorenables a larger sight.
5-It has a strong grip and great gradeability
4-Built-in motor and easy charging.

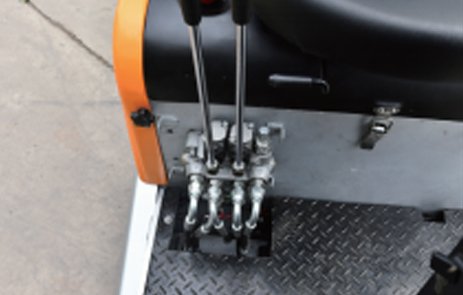

5-Flexible module system and low noise with gearmeshing technique.

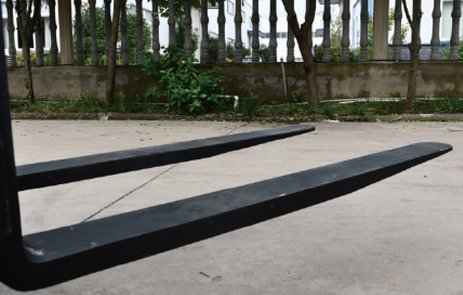

7-More harder of the forged tines.

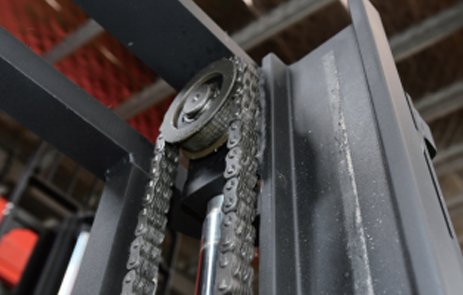

6-The mast will not lower speedly with the oil pipe exploded.
| Power | Electric |
| Operating Type | Seated Type |
| Load Capacity | 1500kg |
| Load Center | 500mm |
| Front Overhang | 196mm |
| Wheel Base | 1130mm |
| Total Weight(With Battery) | 2150kg |
| Wheel Type | Rubber/PU |
| Driving Wheel | φ230*110mm |
| Front Wheel | φ305*127mm |
| Front Wheelbase | 752mm |
| Mast Tilting Angle(F/R) | 2/4° |
| Mast Height After Mast Fall | 2035mm |
| Free Lift | 0mm |
| Lifting Height | 3000mm |
| Height,mast entended | 3918mm |
| Height of Overhead Guards | 1930mm |
| Fork Clearance when last Lowered | 35mm |
| Overall Length(Without Fork) | 2756mm |
| Length to cargo fork face (Without Fork) | 1610mm |
| Overall width | 920mm |
| Fork Size | 1070/100/35mm |
| Fork Spread | 210-580mm |
| Min. Ground Clearance | 60mm |
| Min. Turning Radius | 1425mm |
| Travel Speed(Unload/Load) | 5.2/5km/h |
| Lifting Speed(Unload/Load) | 0.135/0.095m/s |
| Lowering Speed(Unload/Load) | 0.085/0.120m/s |
| Max.gradeability(Unload/Load) | 6/4% |
| Service Brake | Hydraulic+Electronagnetic |
| Drive Motor | 2.5kw |
| Lift Motor | 3.0kw |
| Battery Voltage/Nominal Capacity | 24V/300Ah |
| Charger | 24V/40Ah |
| Type Of Drive Control | AC |
| Sound level at the driver's ear acc | 75dB |
