QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Rated Load

    1500kg

  • Operating Weight

    8600kg

  • Max Lifting Height

    10000mm

DESCRIPTIONS

ATLAPEX electric pallet stacker adopts the most scientific and advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatly improve your warehouse space and improve your efficiency.

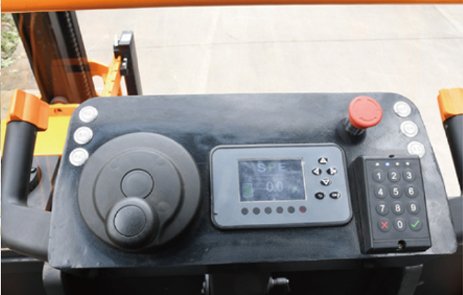

Platform

1-Ergonomic and operation platform offer operator a comfortable condition.

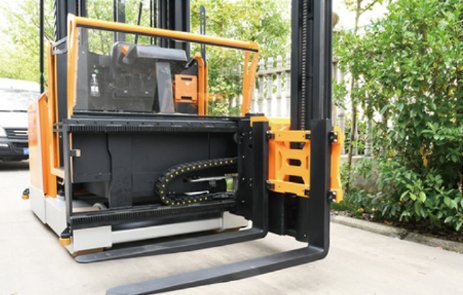

Man-up

2-Make access easier, efficient and flexible.

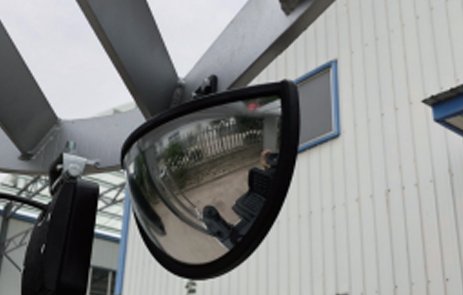

Rearview mirror

3-Semi-circle rearview mirrorenables a larger sight.

Headlight

4-Provide guarantee for safe driving.

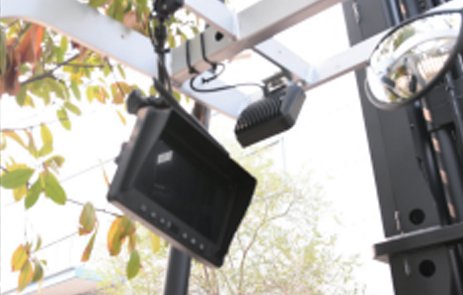

HD Display

5-High-definition display provides security.

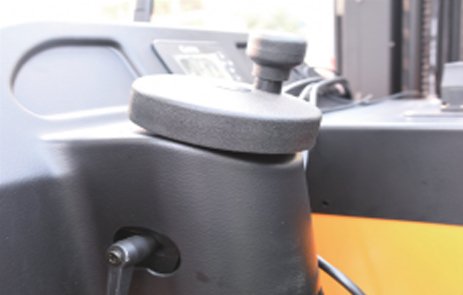

Steering Wheel

6-Easier to operate.

TECHNICAL PARAMETERS

PowerElectric
Operating TypeSeated Type
Load Capacity1500kg
Load Center600mm
Load Distance430mm
Wheelbase1928mm
Self-weight With Battery8600kg
Wheel TypePU
Front Wheelφ350*200mm
Driving wheelφ400*160mm
Wheel Tread (Front Wheel)1190mm
Mast Height After Mast Fall5800mm
Free Lift1500mm
Lift Height10000mm
Height,mast entended10995mm
Height of overhead guards2490mm
Fork Height last Lowered435mm
Overall Length3706mm
Overall Width1086mm
Forklift Body Width1549mm
Fork Spread260-720mm
Fork Size1070/125/45mm
Auxiliary Wheel Outer Width1609mm
Min.Ground clearace80mm
Aisle Width For Pallets   1200x12001700mm
Main Aisle width4555mm
Height Of The Guide Rail180mm
Min Turning Radius2306mm
Travel Speed(Unload/Load)8/7km/h
Lifting Speed(Unload/Load)0.32/0.3m/s
Lowering Speed(Unload/Load)0.38/0.4m/s
Gradeability8%
Service BrakeElectromagnetic
Drive Motor8kw
Lift Motor15kw
Battery TypeLead Acid
Battery voltage/nominal   capacity48V/540AH
Charger48V/75A
Type of Drive ControlAC
