Branded controller system.
Full AC drive system, small size, light weight, maintenance-free.

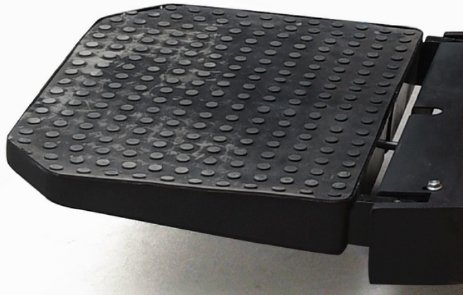

Foldable standing pedal and side safety arms.
High-Quality Damping Spring.
The high-quality hydraulic pump.
Anti-slippery function.
reverse button, Lifting and lowering button)
Ergonomics designed control handle integrates multiple control (Acceleration, Horn, Emergency
Rated Load
Operating Weight
Max Lifting Height

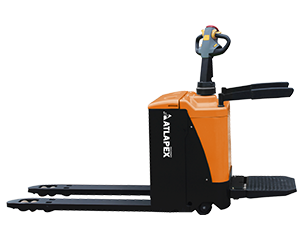

ATLAPEX electric pallet truck adopts the most scientific and advancing design ideas. lt is second to none. Hold the firm belief that the forklift can greatly improve your warehouse space and improve your efficiency.

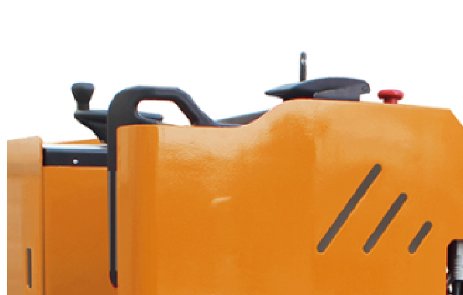

1-Ergonomic and comfortable platform for easy operation.
2-It offers a supporting functionto ensure stability.

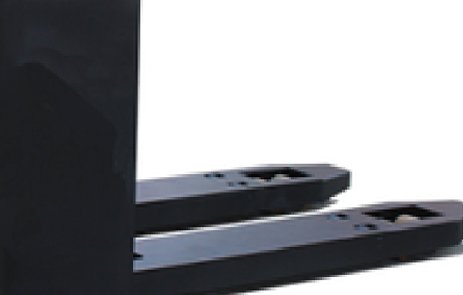

1-With adjustable forged forks
5-Big load, flexible operation,compact structure suits forfactory & warehouse use.
4-Save your energy to improve the efficiency.
| Power | Electric |
| Operating Type | Standing Type |
| Steering Model | EPS |
| Load Capacity | 12000kg |
| Load Center | 600mm |
| Wheel Base | 1837mm |
| Self-weight With Battery | 2800kg |
| Wheel Type | PU |

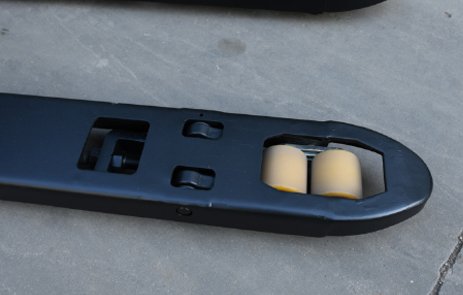

| Front Wheel | φ170*110mm |
| Rear Wheel | φ382*142mm |
| Balance Wheel | φ210*85mm |
| Max Lifting Height | 300mm |
| Fork Outer Width | 800mm |
| Vehicle Body Length | 2300mm |
| Vehicle Boy Width | 1260mm |
| Fork Size | 1200/340/150mm |
| Aisle Width,Pallet 1000×1200 | 2900mm |
| Min Turning Radius | 2122mm |
| Driving Speed(Unload/Load) | 4/5km/h |
| Lifting Speed(Unload/Load) | 0.035/0.03m/s |
| Lowering Speed(Unload/Load) | 0.035/0.043m/s |
| Max.gradeability(Unload/Load) | 3/2% |

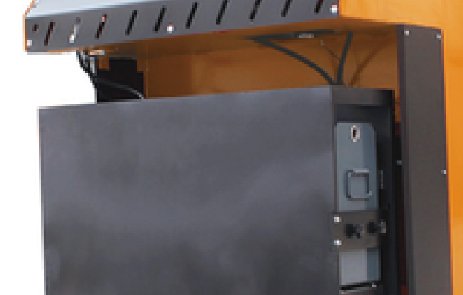

| Service Brake | Electromagnetic |
| Drive Motor | 8kw |
| Lift Motor | 8.6kw |
| Battery | Lead Acid |
| Battery Voltage/Nominal Capacity | 48V/300Ah |
| Charger | 48V/50Ah |
| Type Of Drive Control | AC |
| Sound level at the driver's ear acc | 75dB |
We will contact you within 24 hours.

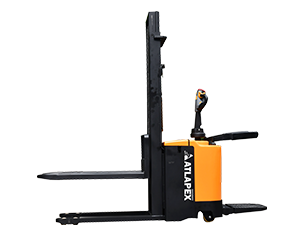

ATLAPEX electric pallet stacker adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.
Rated Power
Operating Weight
Standard Bucket Capacity
ATLAPEX electric pallet truck adopts the most scientific and advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatly improve your warehouse space and improve your efficiency.
Rated Power
Operating Weight
Standard Bucket Capacity

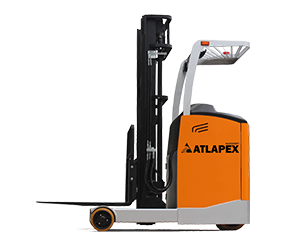

ATLAPEX electric reach forklift adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.
