Extension mast, small turning radius for limited spaces.
Full AC drive system, strong climbing ability, maintenance-free, regenerative braking, and highefficiency.
Branded electric control system with multiple automatic protection systems for enhanced safety.
HD display instrument shows real-time status and fault display for troubleshooting andmaintenance.
Energy-saving EPS reduces consumption by 20%, accurate operation, less driver fatigue, and
increased productivity.
Rated Load
Operating Weight
Mix Lifting Height
ATLAPEX electric reach forklift adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

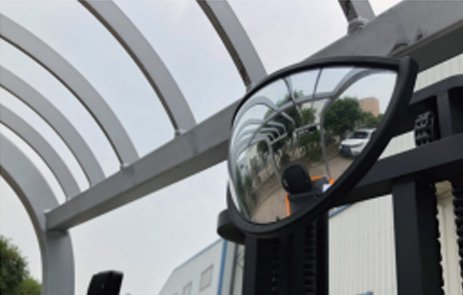

1-Semi-circle rearview mirrorenables a wider view.

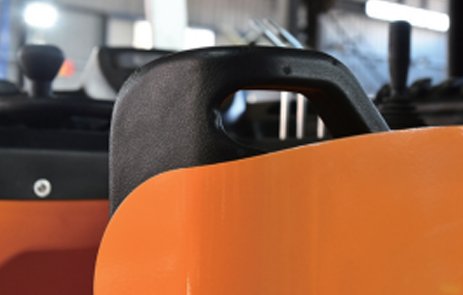

2-Ergonomic and comfortable backrestoffer operator a comfortable condition.

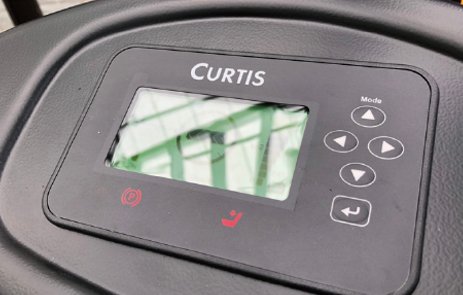

3-Multifunctional instrument panel with complete functions.
3-Standard lead-acid battery, replaceable lithium battery.
4-High-power lamps improve work safety.

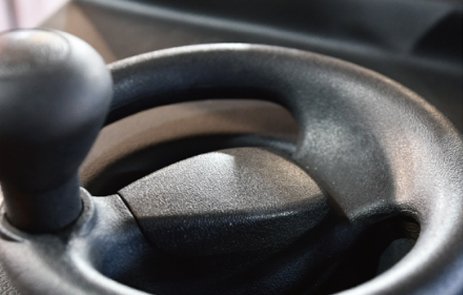

6-The steering wheel is more ergonomic.

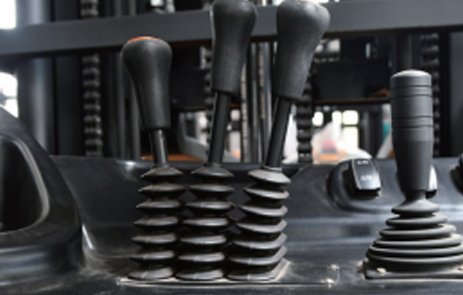

7-Ergonomic and operational platform offer operator a comfortable condition.

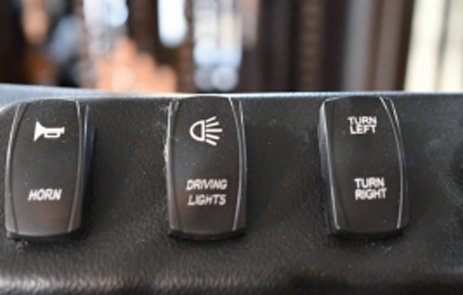

8-Simple operation makes driving safer.
4-High quality polyurethane wheels are more wear-resistant and have a longer life.
| Power | Electric |
| Operating Type | Standing Type |
| Load Capacity | 3000kg |
| Load Center | 500mm |
| Wheel Base | 1770mm |
| Reach Distance | 610mm |
| Self-weight With Battery | 3850kg |
| Wheel Type | PU |
| Front Wheel | φ280*135mm |
| Rear Wheel | φ382*142mm |
| Balance Wheel | φ180*76mm |
| Wheel Tread (Front) | 1330mm |
| Mast Height After Mast Fall | 2280mm |
| Free Lift | 0mm |
| Lift Height | 3000mm |
| Height,mast entended | 3945mm |
| Height of overhead guards | 2260mm |
| Fork face min.ground clearance | 45mm |
| Fork tilting angle Front/Rear | 3/5° |
| Overall Length(without/with fork) | 2150/2640mm |
| Overall Width | 1460mm |
| Fork Size | 1070/125/45mm |
| Fork Spread | 244-820mm |
| Min.Ground clearace | 80mm |
| Min, Turning Radius | 2200mm |
| Travel Speed(Unload/Load) | 8/7km/h |
| Lifting Speed(Unload/Load) | 0.240/0.170m/s |
| Lowering Ing Speed(Unload/Load) | 0.300/0.380m/s |
| Max.gradeability(Unload/Load) | 8% |
| Service Brake | Electromagnetic |
| Drive Motor | 8kw |
| Lift Motor | 12kw |
| Battery Type | Leas Acid |
| Battery voltage/nominal capacity | 48V/400AH |
| Charger | 48V/50AH |
| Type of Drive Control | AC |
| Sound level at the driwer's ear acc. | 75dB |
