Extension mast, small turning radius for limited spaces.
Full AC drive system, strong climbing ability, maintenance-free, regenerative braking, and highefficiency.
Branded electric control system with multiple automatic protection systems for enhanced safety.
HD display instrument shows real-time status and fault display for troubleshooting andmaintenance.
Energy-saving EPS reduces consumption by 20%, accurate operation, less driver fatigue, and
increased productivity.
Rated Load
Operating Weight
Mix Lifting Height
ATLAPEX electric reach forklift adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.
2-Semi-circle rearview mirrorenables a wider view.

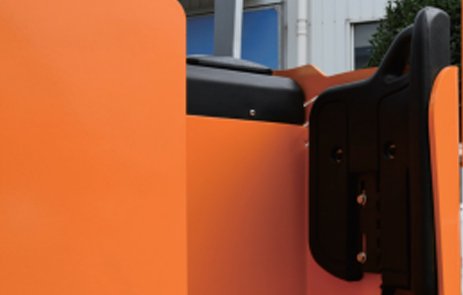

2-Ergonomic and comfortable backrestoffer operator a comfortable condition

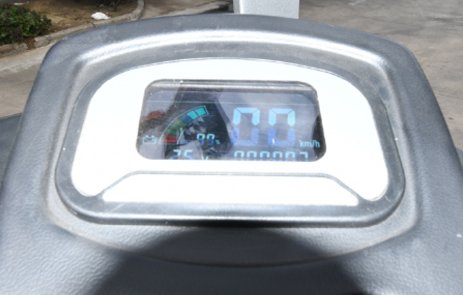

3-Full LCD instrument panel with rich display functions.
3-Standard lead-acid battery, replaceable lithium battery.
4-High-power lamps improve work safety.
4-High quality polyurethane wheels are more wear-resistant and have a longer life.
7-Injection molding material, strong and stable, large operating space.
| Power | Electric |
| Operating Type | Standing Type |
| Load Capacity | 2000kg |
| Load Center | 500mm |
| Front Oyerhang | 145mm |
| Wheel Base | 1584mm |
| Self-weight With Battery | 2250kg |
| Wheel Type | PU |
| Front Wheel | φ254*104mm |
| Rear Wheel | φ230*75mm |
| Balance Wheel | φ150*50mm |
| Wheel tread,Front wheel | 978mm |
| Wheel tread,Rear wheel | 804mm |
| Hast Height After Mast Fall | 2120mm |
| Lifting Height | 4500mm |
| Height,mast entended | 5485mm |
| Height of overhead guards | 2308mm |
| Fork face min.ground clearance | 40mm |
| Fork tilting angle Front/Rear | 3/5% |
| Overall ength | 2460mm |
| Body Length | 1888mm |
| Overall width | 1098mm |
| Fork Size | 1070/122/40mm |
| Fork Spread | 244-705mm |
| Reach Distance | 600mm |
| Min,ground clearance | 77mm |
| Aisle Width,Pallet 1000×1200 | 2880mm |
| Min Turning Radius | 1781mm |
| Driving Speed(Unload/Load) | 5/4km/h |
| Lifting Speed(Unload/Load) | 0.135/0.100m/s |
| Lowering Speed(Unload/Load) | 0.085/0.140m/s |
| Max.gradeability(Unload/Load) | 8/4% |
| Service Brake | Electromagnetic |
| Drive Motor | 2.5kw |
| Lift Motor | 3kw |
| Battery | Lead Acid |
| Battery Voltage/Nominal Capacity | 24V/280Ah |
| Charger | 24V/40Ah |
| Type Of Drive Control | AC |
| Sound level at the driver's ear acc | 75dB |
We will contact you within 24 hours.
ATLAPEX electric pallet stacker adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.
Rated Power
Operating Weight
Standard Bucket Capacity
ATLAPEX electric pallet truck adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatly improveyour warehouse space andimprove your efficiency.
Rated Power
Operating Weight
Standard Bucket Capacity
ATLAPEX electric reach forklift adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.
Rated Power
Operating Weight
Standard Bucket Capacity
WHO IS ATLAPEX ATLAPEX MACHINERY?
ATLAPEX Machinery is a leading international specialty machinery and parts manufacturer & distributor since 2007 , with its manufacturer location and oversea sales office located in Pingdu, Qingdao, China.
