Compact structure makes it easy to retrieve and load. Small turning radius.
Mast reaches with adjustable forged fork suites for all kinds of pallet types.
Branded control system with multiple automatic protection system to provided higher level offunction safety.
AC drive motor, highly efficient, accurate control, strong power.
Rated Load
Operating Weight
Mix Lifting Height
ATLAPEX electric reach forklift adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

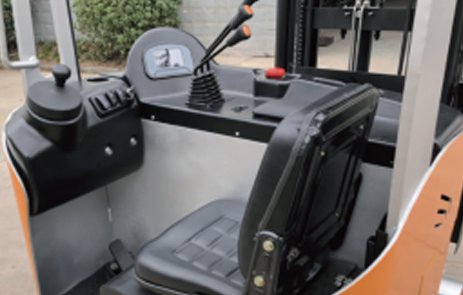

1-Ergonomic and comfortable seatoffer operator a comfortable condition

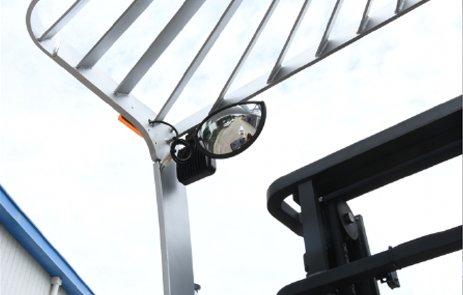

2-Semi-circle rearview mirrorenables a wider view.
3-Standard lead-acid battery, replaceable lithium battery.

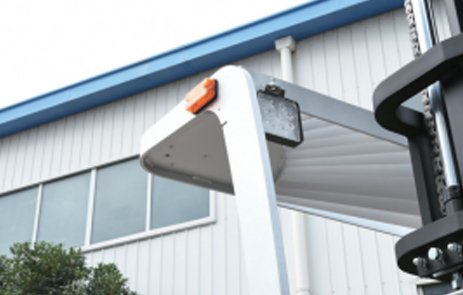

4-High-power lamps improve work safety.
4-High quality polyurethane wheels are more wear-resistant and have a longer life.
| Power | Electric |
| Operating Type | Standing Type |
| Load Capacity | 2000kg |
| Load Center | 500mm |
| Front Overhang | 180mm |
| Wheelbase | 1540mm |
| Self-weight With Battery | 2535kg |
| Wheel Type | PU |
| Front Wheel | φ254*104mm |
| Rear Wheel | φ230*75mm |
| Balance Wheel | φ150*50mm |
| Wheel Tread (Front) | 984mm |
| Wheel Tread (Rear) | 772mm |
| Mast Height After Mast Fall | 2120mm |
| Lift Height | 4500mm |
| Height,mast entended | 5485mm |
| Height of overhead guards | 2090mm |
| Fork face min.ground clearance | 40mm |
| Fork tilting angle Front/Rear | 3/5° |
| Overall Length | 2350mm |
| Bady Length | 1874mm |
| Overall Width | 1100mm |
| Fork Size | 1070/122/40mm |
| Fork Spread | 210-705mm |
| Min.Ground clearace | 80mm |
| Min, Turning Radius | 1780mm |
| Travel Speed(Unload/Load) | 6.5/5.5km/h |
| Lifting Speed(Unload/Load) | 0.135/0.110m/s |
| Lowering Speed(Unload/Load) | 0.085/0.140m/s |
| Max.gradeability(Unload/Load) | 8/4% |
| Service Brake | Electromagnetic |
| Drive Motor | 2.5kw |
| Lift Motor | 3kw |
| Battery Type | Leas Acid |
| Battery voltage/nominal capacity | 24V/280AH |
| Charger | 24V/40AH |
| Type of Drive Control | AC |
| Sound level at the driwer's ear acc. | 75dB |
