ELECTIRC TOW TRACTOR—EPQ20B

Adjustable tow hitch to meet various towing needs.

4-6 Ton models are equipped with a large luggage compartment suits luggage, cargo, and mailloaded and unloaded by aircraft.

Branded control system with multiple automatic protection systems to provide a higher level offunctional safety.

EPS makes convenient and flexible operation, and improves the stability of high-speed driving.

AC drive system, high torque, strong gradeability, ensure run smoothly on uneven roads andslopes.

Get Free Quote

SPECIFICATIONS

Load Capacity

2000kg
Operating Weight

880kg
Max. Traction Load

1000N

DESCRIPTIONS

ATLAPEX electric tow tractor adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

1-It offers a supporting functionto ensure stability.

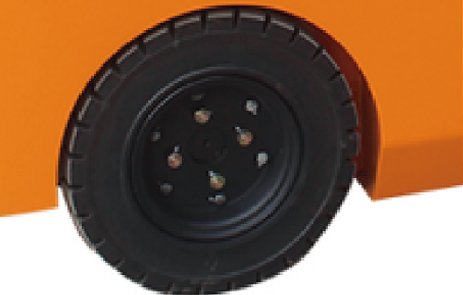

2-Standard solid tire, more wear-resistant.

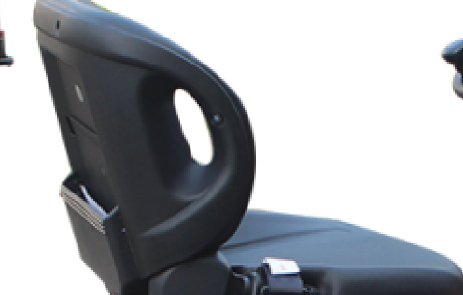

3-Ergonomic seat and operation platformoffer operator a comfortable condition.

4-Ergonomic design, easier to operate.

TECHNICAL PARAMETERS

Power	Electric
Operating Type	Seated Type
Load Capacity	2000kg
Load Traction	500mm
Wheelbase	1040mm
Total Weight(With Battery)	880kg
Battery Weight	180kg
Wheel Type	Rubber Solid Tyre

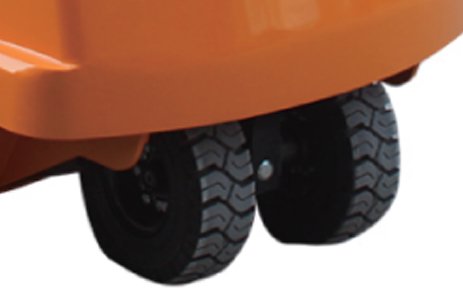

Front Wheel	3.50-5
Rear Wheel	4.00-8
Vehicle Height	1338mm
Seat Height	880mm
Traction Hook Height	300/380mm
Pedal Height	400mm
Rear Overhang Distance	480mm
Vehicle Body Length	1710mm
Vehicle Body Width	845mm
Groumd Clearance	100mm
Turning Radius	1460mm
Driving Speed(Unload/Load)	7/5km/h
Max.gradeability(Unload/Load)	10/8%
Hax. Traction(Load)	1000N
Service Brake	Mechanical +Hydraulic
Drive Motor	2.5kw
Battery	Lead Acid
Battery Voltage/Nominal Capacity	24V/210Ah
Charger	24V/30Ah
Type of Drive Control	AC
Sound level at the driver's ear ac.	75dB
