QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Rated Load

    2500kg

  • Operating Weight

    3680kg

  • Rated Power

    37.5kw

DESCRIPTIONS

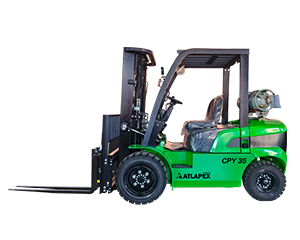

LPG (liquefied petroleum gas) forklifts have gained significant popularity in the material handling industry due to their versatility, efficiency, and environmental friendliness. These forklifts are powered by LPG, a clean-burning fuel that offers numerous advantages over traditional diesel or gasoline-powered forklifts.

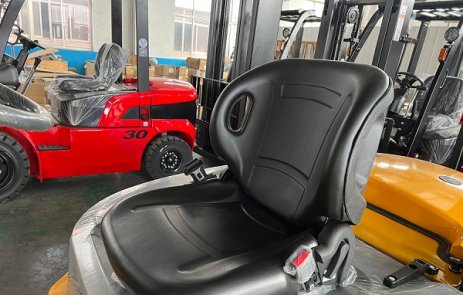

Comfortable Operation Space

1-Ergonomic design minimizes operator long-term work fatigue, increases operating space, increases work efficiency, and enables the driver to operate the forklift more comfortably.

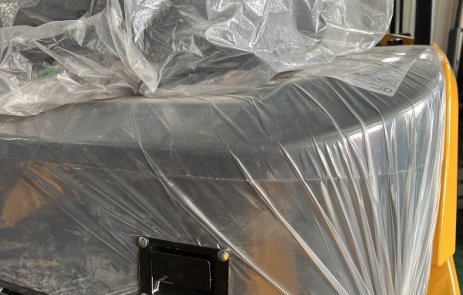

Low noise, low vibration

2-Noise reduction type cushion is used to reduce vibration by 20% Sound insulation cotton is installed under the pedal, the noise is reduced by 5%

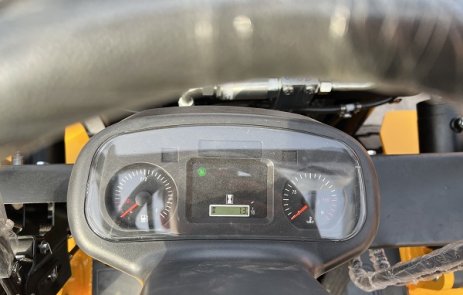

Easier to observe digital instruments

3-Digital instruments are more intuitive and accurate; Easier to operate the forklift

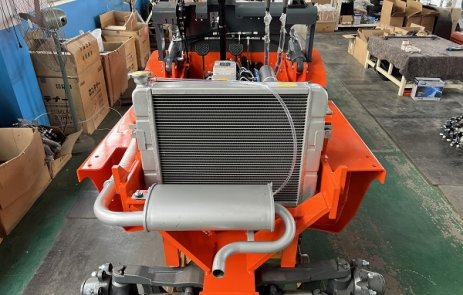

Fast heat dissipation

4-The fin-type oil-dispersed fin structure is special, which can form a strong turbulent flow of the fluid, thereby effectively reducing the thermal resistance and improving the heat transfer efficiency. Its heat transfer coefficient is also 5-10 times higher than that of the tube-type heat sink.

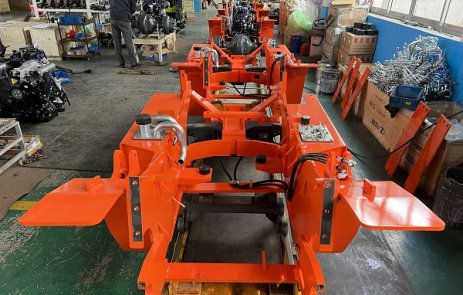

High load integrated frame body

5-The use of boltless, one-piece welding, 20% increase in strength, increased safety, rugged construction allows the truck to operate on uneven ground and long curved roads, to withstand the most demanding cargo handling operations.

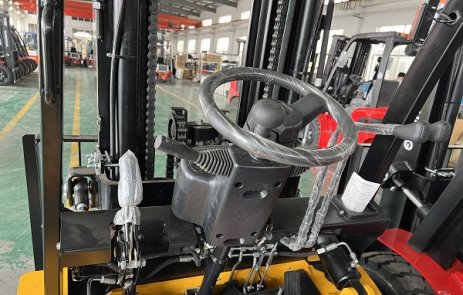

Brake system upgarde

6-The brake arm is increased by 40mm; the pedaling force is reduced by 10%, the braking effect is increased by 20%, and the operation is lighter.

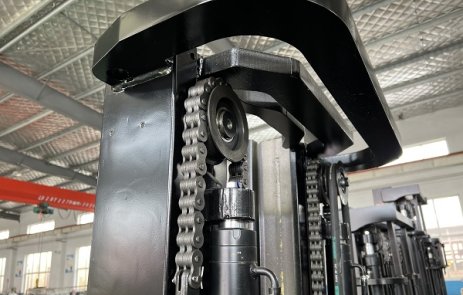

Strong load capacity

7-Increase load capacity by 10%, increase speed by 10%, greatly improve work efficiency.

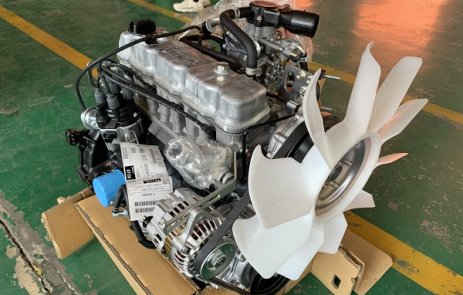

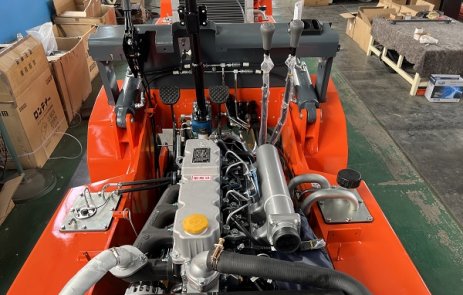

Engine

8-The engine uses direct injection technology to optimize the combustion chamber structure and has excellent starting performance. Low speed, high torque and high power, specially designed for forklift working conditions, high efficiency fuel injection pump, fuel system adopts electronically controlled distribution pump technical route, stable idle speed, low noise and emission meets National III standard.

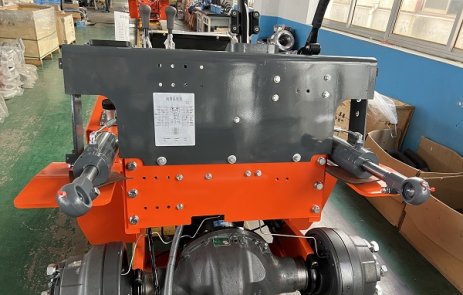

Axle

9-Integrated axle box structure, more stable power transmission.

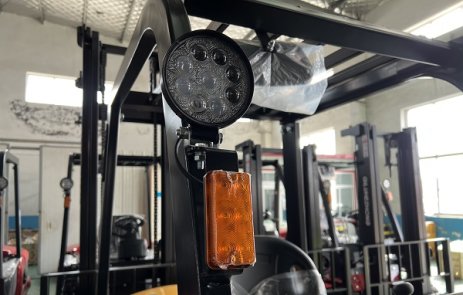

LED light

10-LED lights, enough light, can provide enough light source continuously.

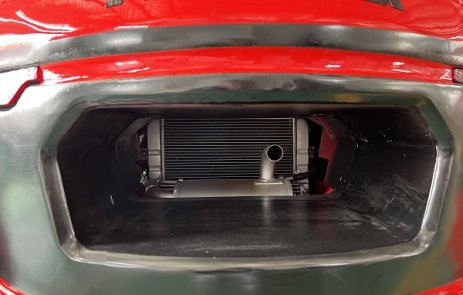

Rearcounter Weight

11-Independent mold opening, solid rear counterweight formed at one time, with special exhaust port.

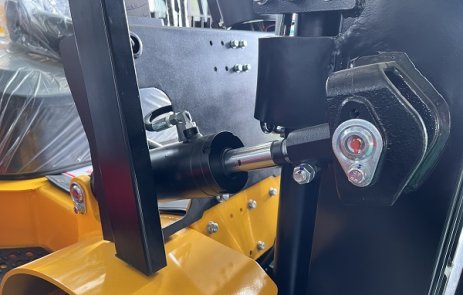

Tilt cylinder

12-High-quality tilting cylinder ensures the stability of the mast.

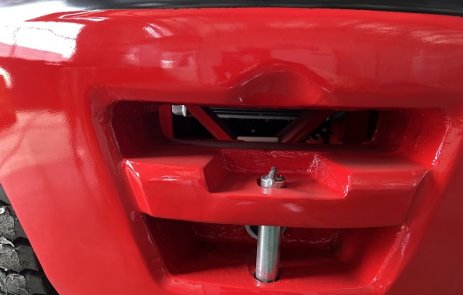

Rear hook

13-Stainless steel rear tow hook, strong and durable.

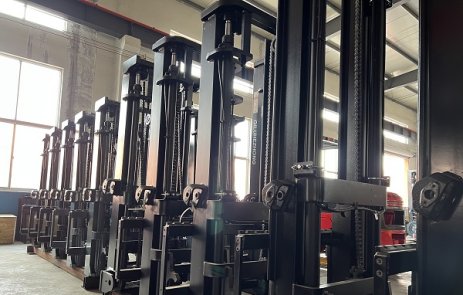

Customizable Mast

14-Independent production of masts, which can be produced according to customer requirements.

Engine

15-Nissan K25 engine, LPG and gasoline dual fuel, strong power.

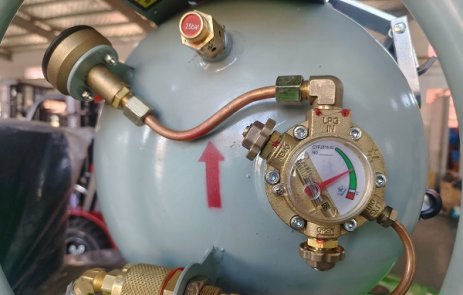

Liquefied Gas Cylinder

16-50L large volume.

TECHNICAL PARAMETERS

2.5ton LPG FORKLIFT
ModelCPY-25
Rated Load Capacity2500kg
Loader Center500mm
Lifting Height(A2)3000mm
Free lifting Height(A4)120mm
Fork Size(LxWxT(B1)1070×122×40mm
Mast Tilting Angle(F/R 6/12
Length(without fork)(B4)2540mm
Overall Width(C1)1164mm
Mast Hight After Mast Fall(A3)2000mm
Lift Height(A1)4000mm
Overhead Guard Height(A5)2140mm
Turning Radius(C2)2240mm
Front /back Overhang(B2)455mm
Right Angle Channel Width2280mm
Wheelbase(B3)1600mm
Track(F/R970/970mm
Ground Clearance(Mast)115mm
Ground Clearance(Car Center)170mm
Front Tire7.00-12
Rear Tire6.00-9
Travel(Full/No Load)17/19.5km/h
Lifting(Full/No Load)530/550mm/s
Lowering(Full/No Load)450/550mm/s
Drawbar Pull(Full/No Load)1350/1000kg
Gradeability(Full/No Load)17/18%
Total Weight3680kg
Battery(Voltage/Capacity)12/80V/AH
Engine ModelGCT K25
Rated Pover/Speed37.5/2400Kw/rpm
Max.Torque/Speed157/1800N.m/rpm
Work Pressure17.5Mpa
Cylinder Volume50L
Tranmission   TypeMechanical/Automatic


GET FREE QUOTE

We will contact you within 24 hours.

RELATED PRODUCTS

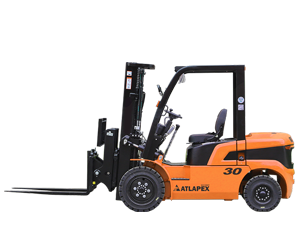

DIESEL FORKLIFT—CPCD25
