ATLAPEX APEX30 All-Terrain Forklift is a groundbreaking piece of machinery designed to conquer any terrain. With its robust build and versatile features, this forklift is capable of tackling even the toughest off-road challenges. Whether you are working in construction, mining, or forestry, APEX30 is the perfect companion for all your heavy-duty lifting needs.
Rated Capacity
Operating Weight
Rated Power
ATLAPEX APEX30 All-Terrain Forklift is a groundbreaking piece of machinery designed to conquer any terrain. With its robust build and versatile features, this forklift is capable of tackling even the toughest off-road challenges. Whether you are working in construction, mining, or forestry, APEX30 is the perfect companion for all your heavy-duty lifting needs.

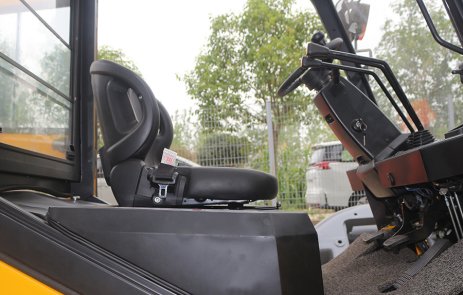

1-Ergonomic design minimizes operator long-term work fatigue, increases operating space, increases work efficiency, and enables the driver to operate the forklift more comfortably.

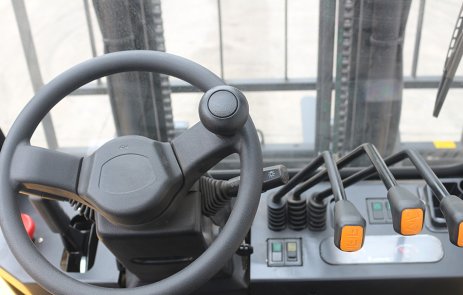

2-Easy operation platform.

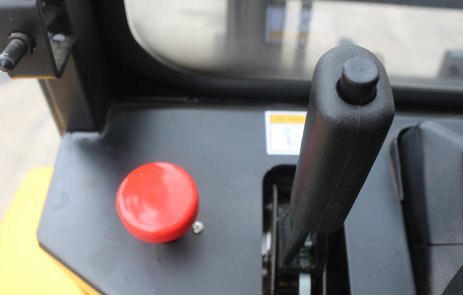

3-Emergency stop button ensures safer operation.

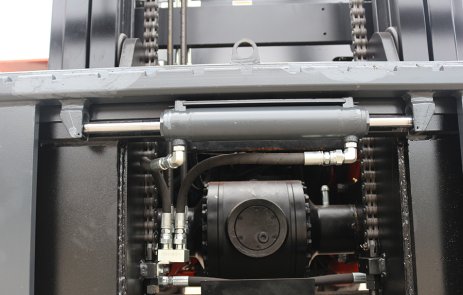

4-A variety of accessories to choose from.

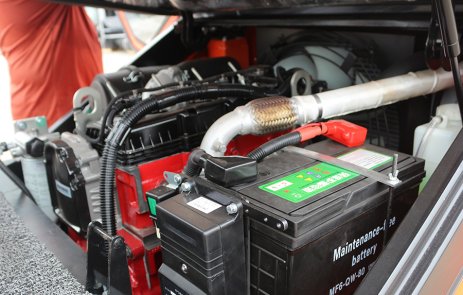

5-High-performance engines are standard, and engines with different emissions are also available.

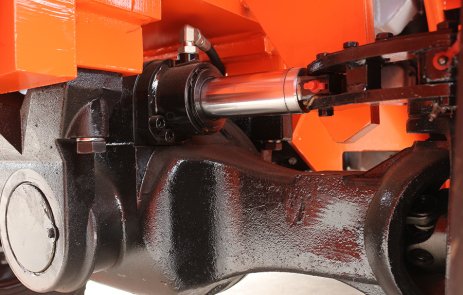

6-High-quality axles ensure the stability of the vehicle body system.
| Model | APEX30-2WD |
| Rated Capacity | 3000KG |
| Load Center | 500mm |
| Power Type | Diesel |
| Driving Type | Seated |
| Wheel Base | 1920mm |
| Tyre Type | Vacuum |
| Wheel Number (F/R) | 2/2 |
| Front Tread | 1250mm |
| Rear Tread | 1196mm |
| Tyre (F/R） | 14-17.5-14PR/10.0/75-15.3-12PR |
| Front Overhang | 610mm |
| Mast Tilting Angle（F/R） | 10/12° |
| Height With Mast Retraction | 2270mm |
| Free Lifting Height | 160mm |
| Max.Lifting Height | 3000mm |
| Max.Leight After Lifting | 4410mm |
| Overall Guard Height | 2260mm |
| Fork size(L x W x T) | 1070 x 125 x 50mm |
| Overall Length (fork excluded) | 3150mm |
| Overall Width | 1600mm |
| Turning Radius | 2800mm |
| Ground Clearance Of Mast | 270mm |
| Lateral Fork Adjustment(Max./Min.) | 1500/250mm |
| Travelling Speed (loaded/unloaded) | 20/21mm |
| Lifting Speed (loaded/unloaded) | 500/530mm |
| Lowering Speed | 450/500mm |
| Gradeability (loaded) | 18% |
| Total Weight | 5150kg |
| Engine Manufacturer / Model | Xinchai A498 |
| Rated Power / Speed | 36.8/2400 Kw/rpm |
| Max.Torque / Speed | 186/1600~1800 Nm/rpm |
| Engine displacement | 3.167L |
| Transmisstion Gears（F/R） | 1/1 |
| Fuel Tank Capacity | 62 |
| Service Brake / Parking Brake | Hydraulic/Mechanical |
