QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Rated Load

    3500kg

  • Operating Weight

    4860kg

  • Rated Power

    42kw

DESCRIPTIONS

ATLAPEX CPCY30 All-Terrain Forklift is a groundbreaking piece of machinery designed to conquer any terrain. With its robust build and versatile features, this forklift is capable of tackling even the toughest off-road challenges. Whether you are working in construction, mining, or forestry, the CPCY30 is the perfect companion for all your heavy-duty lifting needs.

Comfortable Operation Space

1-Ergonomic design minimizes operator long-term work fatigue, increases operating space, increases work efficiency, and enables the driver to operate the forklift more comfortably.

Easier to observe digital instruments

3-Digital instruments are more intuitive and accurate; Easier to operate the forklift

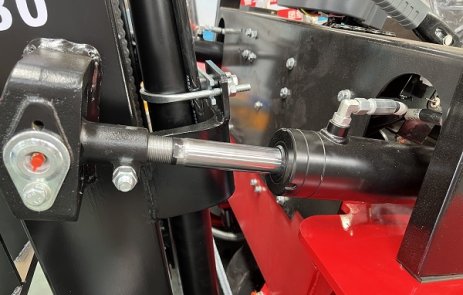

Tilt cylinder

3-High-quality tilting cylinder ensures the stability of the mast.

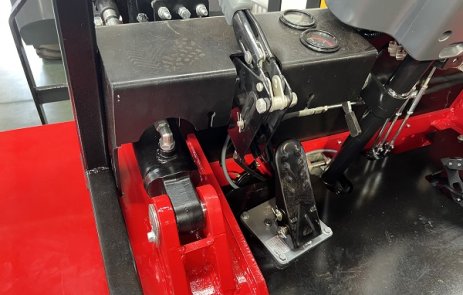

Brake system upgrade

4-The brake arm is increased by 40mm; the pedaling force is reduced by 10%, the braking effect is increased by 20%, and the operation is lighter.

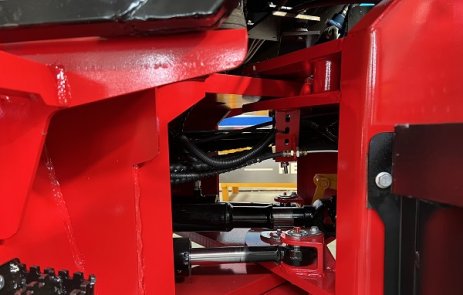

Hinged connection

5-Smaller turning radius for easier maneuvering.

High load integrated frame body

3-Adopting mature fuel vehicle chassis technology and optimized design, the vehicle has strong stability and more flexible control.

Strong load capacity

4-Increase load capacity by 10%, increase speed by 10%, greatly improve work efficiency.

Customizable Mast

8-Independent production of masts, which can be produced according to customer requirements.

LED light

5-LED lights, enough light, can provide enough light source continuously.

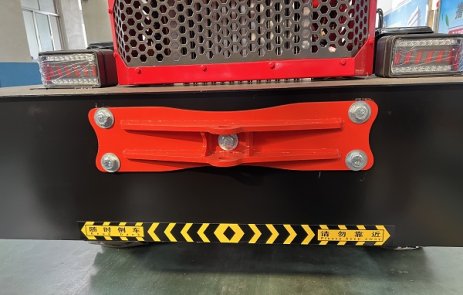

Rear hook

10-Stainless steel rear tow hook, strong and durable.

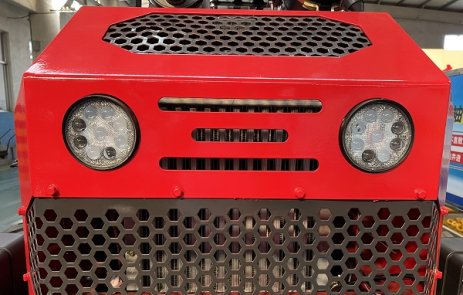

Fast heat dissipation

11-The fin-type oil-dispersed fin structure is special, which can form a strong turbulent flow of the fluid, thereby effectively reducing the thermal resistance and improving the heat transfer efficiency. Its heat transfer coefficient is also 5-10 times higher than that of the tube-type heat sink.

TECHNICAL PARAMETERS

ROUGH TERRAIN FORKLIFT—CPCY30
ModelCPCY35
Rated Load Capacity3500kg
Loader Center500mm
Lifting Height3000mm
Free lifting Height135mm
Fork Size(LxWxT1220×122×45mm
Mast Tilting Angle(F/R 10/12
Length(without fork)3040mm
Overall Width1520mm
Mast Hight After Mast Fall2185mm
Lift Height4110mm
Overhead Guard Height2220mm
Turning Radius3450mm
Front /back Overhang545mm
Right Angle Channel Width3350mm
Wheelbase1800mm
Track(F/R1280mm
Ground Clearance(Mast)250mm
Ground Clearance(Car Center)260mm
Front Tire10-16.5
Rear Tire10-16.5
Travel(Full/No Load)20/30km/h
Lifting(Full/No Load)440/480mm/s
Lowering(Full/No Load)380/360mm/s
Drawbar Pull(Full/No Load)1560kg
Gradeability(Full/No Load)20/25%
Total Weight4860kg
Battery(Voltage/Capacity)24/60V/AH
Engine ModelYunnei
Rated Pover/Speed42/2400Kw/rpm
Max.Torque/Speed160/1400N.m/rpm
Work Pressure14.5Mpa
Fuel Tank   Capacity60L
Tranmission   TypeAutomatic
