Our ATLAPEX Series scissor lifts cover 3m to 14m, hydraulic powered, electric motor drive, which have long run time, and high productivity. It is widely used in factories, warehouses, stations, airports, and other occasions that require high altitude operations.
Max. Working Height
Max.Platform Height
Rated Load
Self propelled scissor lift uses whole electrophoresis. The shaft pin is maintenance-free salt bath nitriding treatment. The scissor lift equips with protective system, includes overload protection, pit protection,
inclined protection, emergency descent system,emergency stop button and secondary descent system.
The pedal extension platform can be quickly rolled out to the operating point.
The foldable guardrail reduces the volume of the whole machine.
25% climbing ability, able to smoothly climb up the slope.
Swivel chassis for easy maintenance.
Fault codes are automatically displayed for easy maintenance.

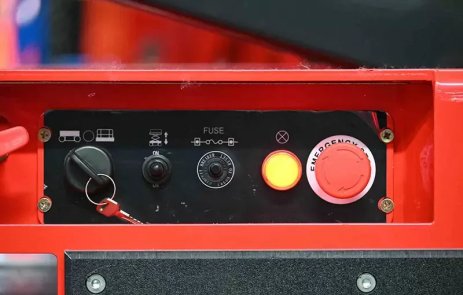

1-Including main switch, emergency descent button, emergency descent rope, upper&bottom control switch button, and lifting button.
2-Using high-quality battery brand, more stable and safe.

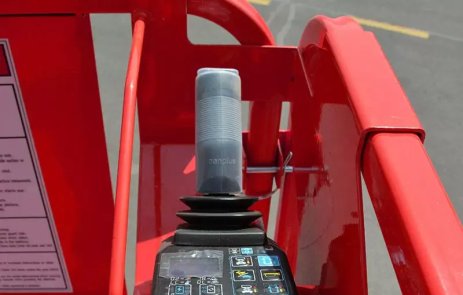

3-Control the lifting and walking of the equipment, the operation is simple and convenient.

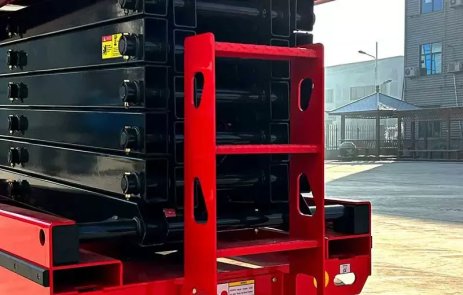

4-The perforated plate is used to improve the anti-skid ability of the ladder.

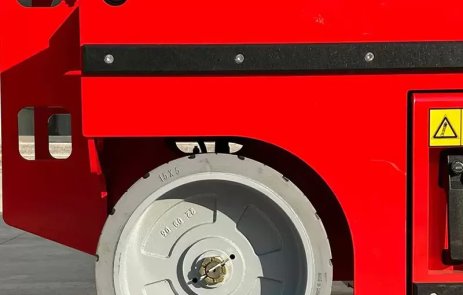

5-Long using time, and will protect the ground.

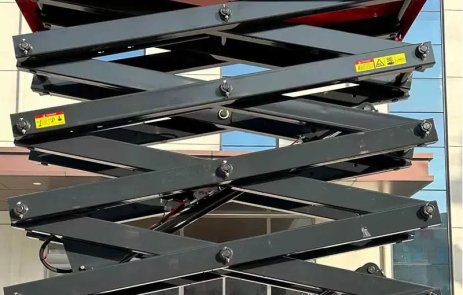

6-High-strength manganese steel material, surface electrophoresis treatment, strong anti-rust ability.

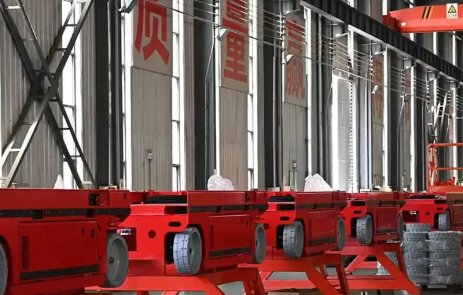

7-Adopt intelligent and precise processing equipment to ensure the quality of the equipment.
| Model | APPT0507DEM |
| Working Height | 6.5m |
| Platform Height-Elevated | 4.5m |
| Platform Height-Stowed | 0.99m |
| Working Platform Size(L x W x H) | 1.29x0.7x1.05m |
| Platform Extension Size | 0.6m |
| Overall Size (L x W x H, the guardral is not folded) | 1.39x0.81x2.09m |
| Overall Size (L x W x H, guardral folded) | 1.39x0.81x1.73m |
| Min. ground Clearance | 0.85/0.02m |
| Wheelbase | 1.11m |
| Capacity Of Extension | 100kg |
| Platform Capacity | 230kg |
| Max.Number Of Workers | 3 |
| Driving Speed (Strowed) | 3.5km/h |
| Driving Speed (Raised) | 0.5km/h |
| Turning Radius (outside/inside) | 1.35m/0.3m |
| Lifting Speed | 4-6m/min |
| Max.Gradeability | 25% |
| Max.Working Angle | 1.5°/3° |
| Tire(drive wheel) | Ф255x80mm |
| Storage Battery | 2x12V/103ah |
| Charger | 24V/15A |
| Machine Weight | 1010kg |
We will contact you within 24 hours.
Atlapex self-propelled scissor lift can move by itself without external force and external power source. It can work only with one person and it is very convenient and efficient. It is widely used for repairing, cleaning, maintaining, and more high altitude operations.Its platform height is from 3m to 14m. Load capacity is from 230 to 550 kilogram.
Rated Power
Operating Weight
Standard Bucket Capacity
Atlapex self-propelled scissor lift can move by itself without external force and external power source. It can work only with one person and it is very convenient and efficient. It is widely used for repairing, cleaning, maintaining, and more high altitude operations.Its platform height is from 3m to 14m. Load capacity is from 230 to 550 kilogram.
Rated Power
Operating Weight
Standard Bucket Capacity
Atlapex self-propelled scissor lift can move by itself without external force and external power source. It can work only with one person and it is very convenient and efficient. It is widely used for repairing, cleaning, maintaining, and more high altitude operations.Its platform height is from 3m to 14m. Load capacity is from 230 to 550 kilogram.
Rated Power
Operating Weight
Standard Bucket Capacity
WHO IS ATLAPEX ATLAPEX MACHINERY?
ATLAPEX Machinery is a leading international specialty machinery and parts manufacturer & distributor since 2007 , with its manufacturer location and oversea sales office located in Pingdu, Qingdao, China.
