AX955N Wheel loader is a heavy equipment machine used in construction and mining industries. It is primarily used to load materials such as asphalt, gravel, sand, and rocks into trucks or other vehicles for transportation.
AX955N Wheel loader is a heavy equipment machine used in construction and mining industries. It is primarily used to load materials such as asphalt, gravel, sand, and rocks into trucks or other vehicles for transportation.
Rated Power
Operating Weight
Rated Load
AX955N Wheel loader is a heavy equipment machine used in construction and mining industries. It is primarily used to load materials such as asphalt, gravel, sand, and rocks into trucks or other vehicles for transportation.

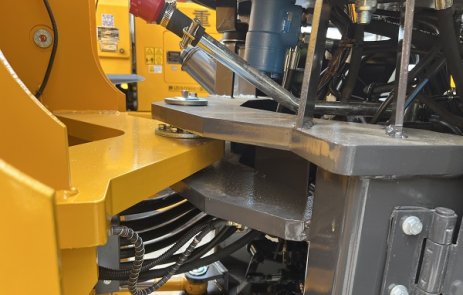

1-ATALPEX front end wheel loaders have a excellent durable joint joint. This increases stability, and results in higher levels of durability and control. High quality Only the best design elements and materials.
2-Humanized design, easier operation.

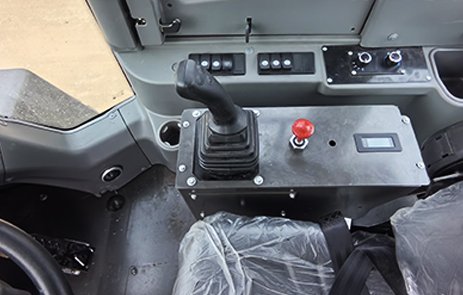

3-Equipped with functional armrest box and front multi-way valve, easy to operate and not prone to fatigue.

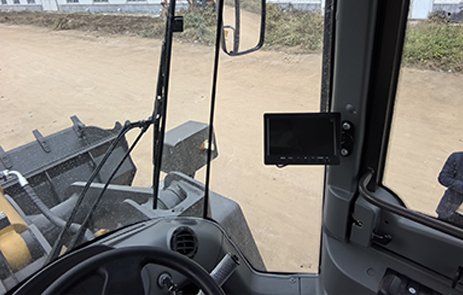

4-High-definition display screen ensures safe operation.
| Rated Load | 5000kg |
| Overall Weight | 16500kg |
| Bucket Width | 2950mm |
| Rated Bucket Capacity | 3m3 |
| Maximum Tractive Force | 152KN |
| Maximum Breakout Force | ≥170KN |
| Maximum Grade Ability | 30° |
| Maximum Dump Height | 3150mm |
| Maximum Dump Reach | 1250mm |
| Overall Dimension (L×W×H) | 8085×2950×3450mm |
| Minimum Turning Radius | 6150mm |
| Model | Weichai SteyrWD10G220E21 |
| Type | lnline water cooling dry cylinder injection |
| No. of cylinder-bore/stroke | 6－126×130mm |
| Rated Power | 162kw |
| Maximum Torque | 980N.m |
| Min Fuel-consume Ratio | ≤215g/kw.h |
| Torque Converter | ZL50 |
| Gearbox Model | planetary |
| Gear Shift | 2forward shift 1reverse shift |
| Maximum Speed | 38km/h |
| Main Reducing Spiral | Bevel gear grade 1reduction |
| Decelerating Model | Planetary reduction,grade 1 |
| Wheel Base | 3250mm |
| Wheel Tread | 2250mm |
| Minimum Ground Clearance | 460mm |
| System Working Pressure | 18Mpa |
| Boom Lifting Time | 5.95±0.2s |
| Total Time | 10.95±0.5s |
| Fuel Tank Capacity | 290L |
| Hydraulic Tank Capacity | 250L |
| Function Of Leveling Automatically | Assembled |
| Service Brake | Air over hydraulic disc brake on 4 wheels |
| Parking Brake | Manual parking brake |
| Type Specification | 23.5-25 |
| Front Tyre Pressure | 0.4Mpa |
| Rear Tyre Pressure | 0.35Mpa |
